Macro Ingredient Scale

Description & Features

Followed by multiple dosing auger feed hopper to the same measure, the ratio of the load for different materials, widely used in flour with flour, feed mills, chemical, food, plastics, fertilizer and other industries ingredients.



1. Module weighing sensor, signal stability, weighing accurate and reliable.
2. Hopper wall smooth, external vibrators can be installed, no residue in the bucket, to improve the accuracy of dosing.
3. Dedicated batching control instrument display material weight, has accumulated value ingredients, ingredient batches.
4. Touch keyboard input formula to achieve control parameter settings, manual intervention command operations and other functions.
5. There RS485 communication interface with the host computer networking, computer batching control.





Product Specification

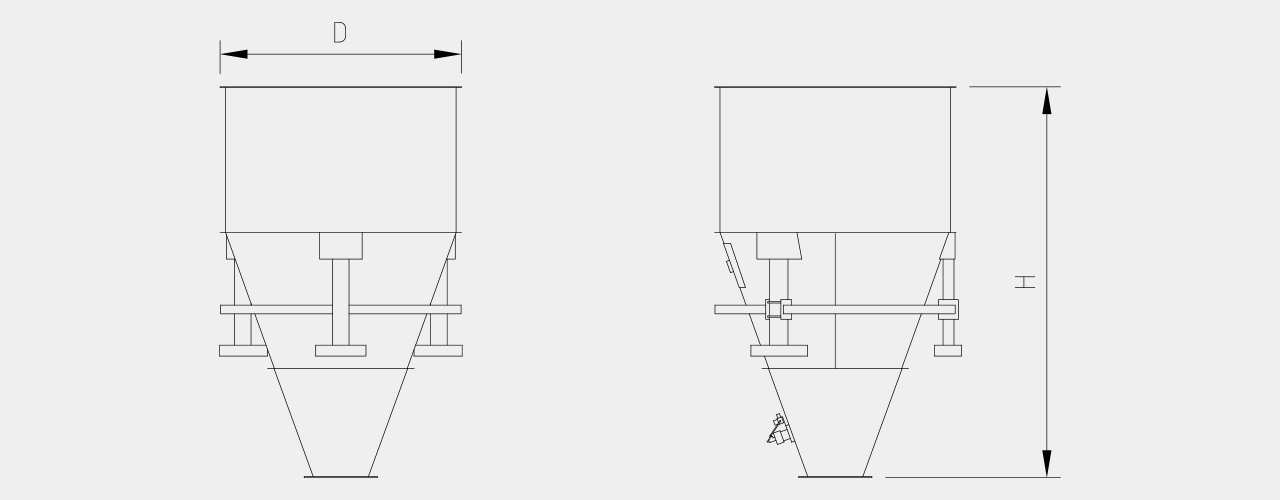

Model	Weighing Hopper Volume	No. of Ingredients	Accuracy	Dimension
PL-0.5	500L	1~16	<0.2%	1000x1200mm
PL-1	1000L	1~16	<0.2%	1600x1700mm
PL-2	2000L	1~16	<0.2%	2200x2200mm
PL-5	5000L	1~16	<0.2%	2200x3500mm
