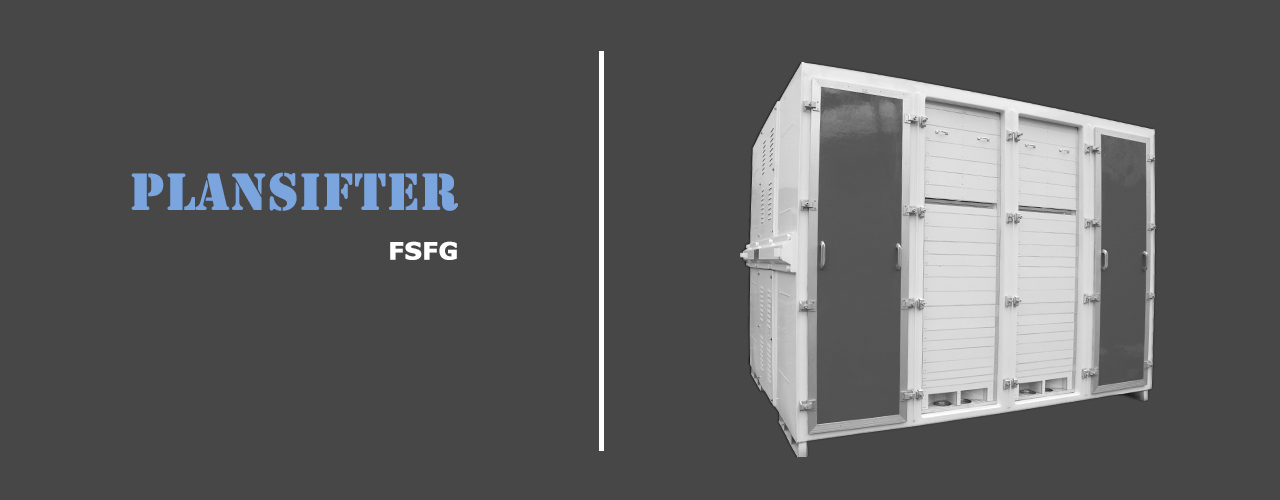

Plansifter

Description & Features

FSFG plansifter is mainly applied in sifting and grading for system material during milling process in milling industry, and also used in other industries for granule materials.

1. Unique motor shaft sealing device ensures the flour not enter into the main equipment.
2. It is equipped with a resilient support of the balance iron under the main shaft.
3. Using SKF self-aligning roller bearings for drive shaft, to ensure highly concentric precise.
4. The top of sieve is adopted adjustment clamping mechanism; it has simple, convenient, and easy operation characteristics.
5. Using the new sieve box, the novel design patterns of sieve box increase the sieve area and capacity.
6. Sieve door and the channel sealing strict, to ensure no powder fleeing and powder leakage.
7. Plansifter framework uses automobile frames steel bending, welding, strong rigidity, and good fatigue resistance
8. The completely enclosed structure is adopted for the machine with the drive motor inside it, and has attractive appearance.




Product Specification

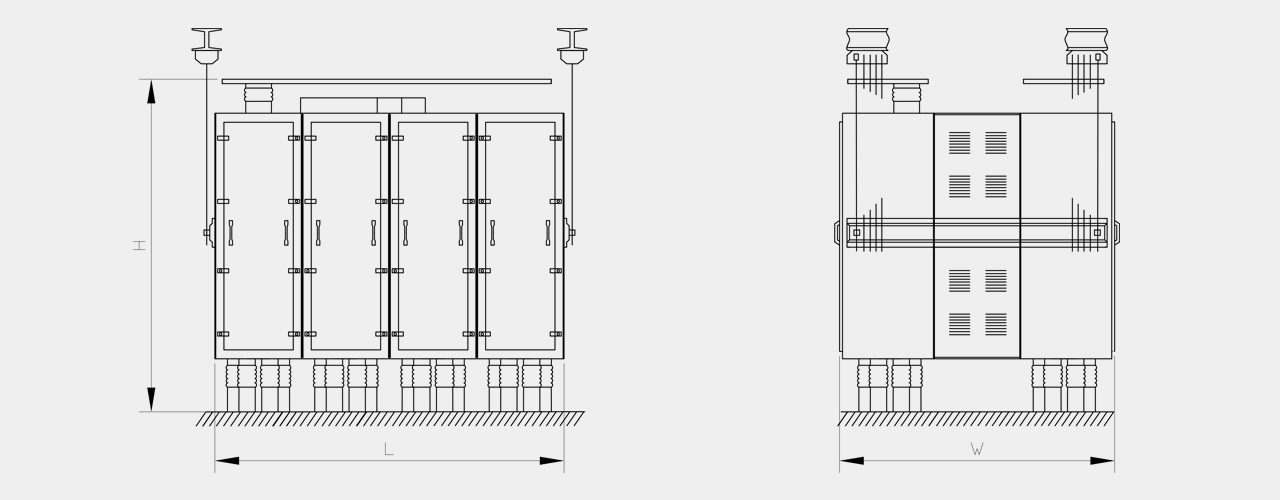

Model	Comp.	Sieves of Comp.	Sieve Size	Sieve Area	Power	Dimension
FSFG4ax24~30	4	23~30pcs	640x640	33.9~42.4m2	3kw	1720x2340x2770mm
FSFG6ax24~30	6	23~30pcs	640x640	50.9~63.6m2	4kw	2490x2340x2770mm
FSFG8ax24~30	8	23~30pcs	640x640	67.8~84.8m2	7.5kw	3270x2340x2770mm
FSFG4bx24~30	4	23~30pcs	740x740	45.6~58.3m2	5.5kw	1920x2540x2770mm
FSFG6bx24~30	6	23~30pcs	740x740	68.5~85.5m2	7.5kw	2810x2540x2770mm
FSFG8bx24~30	8	23~30pcs	740x740	91.2~114.1m2	11kw	3670x2540x2770mm
